# There's a Framework for That!

## Seven and a Half Seconds of Fame

Adriaan de Groot
September 8th, 2019

---

# A little history

.left-column[
## KDE Frameworks
Replace monolithic *kdelibs4* with something easier to use.

Something
 - lightweight,
 - self-contained,
 - focused,
 - easier to consume externally.

*Cool extensions to Qt*
]

.right-column[
## History
 - July 1st, 2014
 - ECM from the start
 - 53 libraries in the first release
 - 72 in 5.61 on August 3rd, 2019
]

---

# That's great!

## it starts with an ..

---

# Tier 1

.left-column[

## Extra-CMake-Modules

Support for finding and managing all the frameworks
]

.right-column[

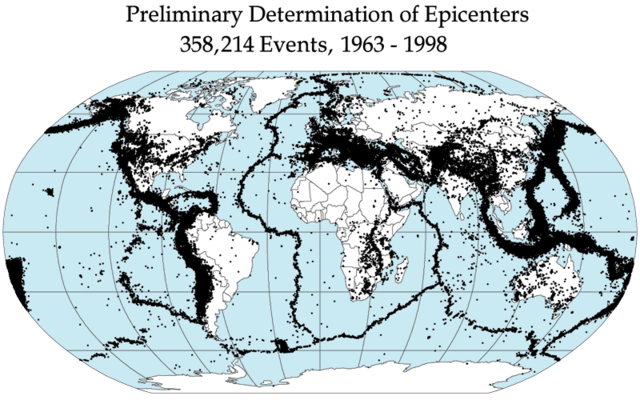

## Earthquake

![Earthquake](earthquake.png)
]

---

# Tier 1

.left-column[
## Attica

Open Collaboration Services API

## KUserFeedback

User feedback framework

]

.right-column[
## Birds

![Birds](bird.png)
]

---

# Tier 1

.left-column[
## BreezeIcons

Breeze icon theme

## Oxygen-icons

Oxygen icon theme

## QQC2-Desktop-Style

QtQuickControls 2 style that integrates with the desktop

]

.right-column[
## Snakes

![Snakes](snake.jpg)
]

---

# Tier 1

.left-column[
## BluezQt

Qt wrapper for BlueZ 5 DBus API

## ModemManagerQt

Qt wrapper for ModemManager API

## NetworkManagerQt

Qt wrapper for NetworkManager API

## Solid

Hardware integration and detection

]

.right-column[
## Aeroplanes

![Aeroplane](airplane.png)
]

---

# Tier 1

.left-column[
## KHolidays

Holiday calculation library

## KI18n

Advanced internationalization framework

]

.right-column[
## Lenny Bruce

![Lenny Bruce](lenny.jpg)
]
---

# Tier 1

.left-column[
## Kirigami2

QtQuick plugins to build user interfaces based on the KDE human interface guidelines

## KItemModels

Models for Qt Model/View system

## KItemViews

Widget addons for Qt Model/View

## Quick Charts

A QtQuick module providing high-performance charts.

]

.right-column[
## Eye of a Hurricane

![Hurricane](hurricane.jpg)
]

---

# Tier 1

.left-column[
## Prison

Barcode abstraction layer providing uniform access to generation of barcodes

]

.right-column[
## Listen to yourself churn

![Butter Churn](churn.jpg)

]

---

# Tier 1

.left-column[
## KApiDox

Scripts and data for building API documentation (dox) in a standard format and style
]

.right-column[
## World serves its own needs

![World](earth.jpg)

]

---

# Tier 1

.left-column[
## ThreadWeaver

High-level multithreading framework

]

.right-column[

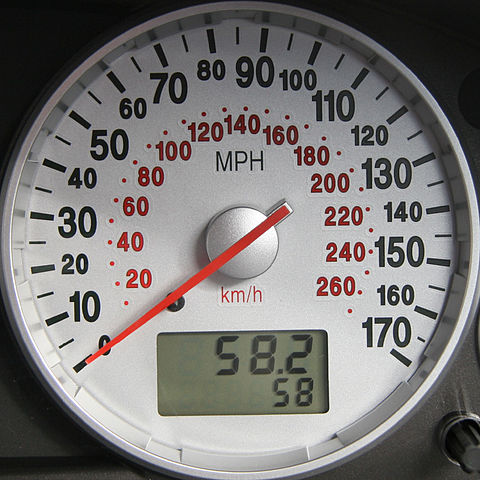

## Speed it up a notch

![Speedometer](speed.jpg)

]

---

# Tier 1

.left-column[
## KSyntaxHighlighting

Syntax Highlighting

## Sonnet

Support for spellchecking

]

.right-column[
## Grunt

![Grunt](grunt.png)
]

---

# Tier 1

.left-column[
##  KArchive

File compression

## KCodecs

Text encoding

]

.right-column[
## Strength

![Arm](arm.png)

]

---

# Tier 1

.left-column[
## KCoreAddons

Addons to QtCore

## KDBusAddons

Addons to QtDBus

## KGuiAddons

Addons to QtGui

## KWidgetsAddons

Addons to QtWidgets

]

.right-column[

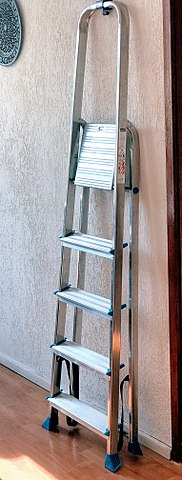

## The ladders clatter

![Ladder](ladder.jpg)
]

---

# Tier 1

.left-column[

## KWayland

Qt-style API to interact with the wayland-client and wayland-server API

## KWindowSystem

Access to the windowing system

]

.right-column[
## Wire in a fire

![Firewire](fw.png)

]

---

# Tier 1

.left-column[
## KConfig

Configuration system

## KDNSSD

Abstraction to system DNSSD features
]

.right-column[
## Wasn't coming in a hurry

![Hurriers](hurry.jpg)

]

---

# Tier 1

.left-column[
## KIdleTime

Monitoring user activity

## KPlotting

Lightweight plotting framework

]

.right-column[
## Furies breathing down your neck

![Furies](fury.jpg)

]

---

.left-column[
.. and that's just Tier 1, the little libraries.

Tiers 2, 3 and 4 build higher and further.
]

.right-column[
![Slow](slow.png)
]
---

class: title-slide

# KCoreAddons

## Addons to QtCore

---
.
# KCoreAddons

**Still** 30 classes of awesomeness in 670kB

- About this application
 - Jobs
 - Plugins
 - System information

So let's pick just two bits: `KOSRelease` and `KWordMacroExpander`.

---

# KCoreAddons

## KOSRelease

- `/etc/os-release` is a FreeDesktop standard file
 - It describes part of the Linux system
 - Mostly *vendor* information
 - Mix of text, URLs

---

# KCoreAddons

## KOSRelease

Why bother?
 - Parsing the file is pretty trivial
 - Getting it right once is enough

Use it because:
 - One source of truth about the contents of `/etc/os-release`
 - Supports alternate paths
 - Also supported on FreeBSD

---

# KCoreAddons

## KOSRelease

```
#include <KOSRelease>

/* Reporting a bug? */
    KOSRelease r;
    QUrl url( r.bugReportUrl() );

QString description = QStringLiteral( "Bug in %1 %2" )
        .arg( r.prettyName(), r.variant() );
```

---

# KCoreAddons

## KWordMacroExpander

- Going beyond `QString::arg()`
 - But not all the way to Grantlee

The style is familiar to shell, Makefile, CMake ..

---

# KCoreAddons

## Talk about $FRAMEWORK $CLASSNAME

- Configurable with a command-character
 - Replaces the word after a command-character

Convenience functions in `KMacroExpander` namespace for **static** replacement.

Class `KWordMacroExpander` is base-class for **dynamic** replacement.

---

# KCoreAddons

## KMacroExpander

- Free functions in namespace work on a QString
 - Replacements defined in a QHash
 - Configurable command-character

```
    KOSRelease r;

QHash h;
    h.insert( "NAME", r.prettyName() );
    h.insert( "VARIANT", r.variant() );

QString description = KMacroExpander::expandMacros(
        QStringLiteral( "Bug in $NAME $VARIANT" ), h );
```

- There's also a single-char-names version

---

# KCoreAddons

## KWordMacroExpander

Why bother?
 - `QString::arg()` could do the job
 - You rarely need unstructured replacement

Use it because:
 - Missing arguments are a mess
 - Names are easier to understand
 - Dealing with edge cases (escaping, quoting) is annoying

---
